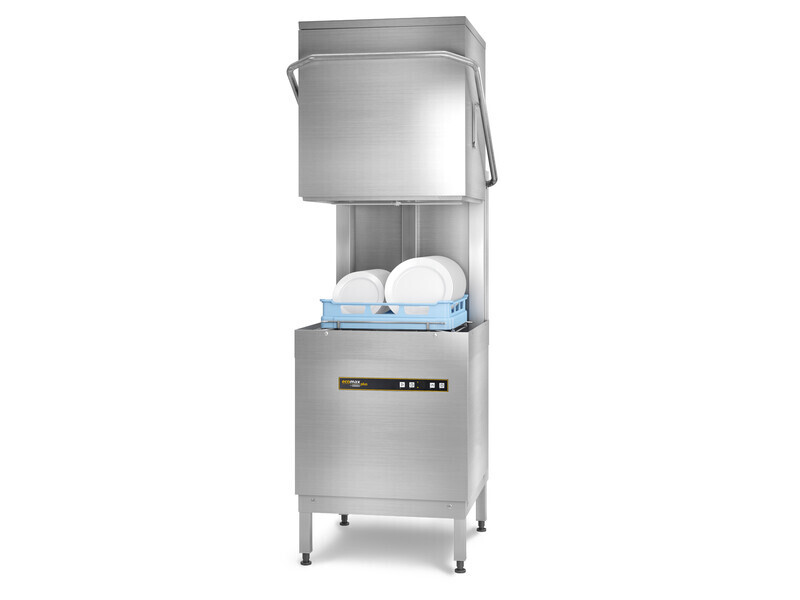

Hobart Ecomax Plus H615 Hood-Type Dishwasher

The dishwasher for ergonomic and efficient working processes in the kitchen. This is a powerful partner for the catering and hotel sector.

- Top mounted SINGLE BUTTON CONTROL - Easy-to-See, Easy-to-Use with status indication & 3 cycles - 60, 90 & 180 seconds.
- Suitable for all dish & glass washing applications. Usable chamber height of 440 mm. Able to wash 1/1 GN pans when using optional open ended tray racks
- Low 2.2 litres per cycle rinse volume - dish / glasswasher with rinse pump to guarantee rinse volume and pressure
- Fully enclosed 4 sided hood design - avoiding loss of energy / steam
- Optimum hygienic - deep drawn tank with coved corners (no welds) and SELF-CLEANING CYCLE
- Polypropylene wash and stainless steel rinse arm with patented WIDE ANGLE FAN nozzle to maximise wash and rinse performance
- Wash pump inlet strainer to ensure machine reliability
- Includes chemical dispensers, fill hose, power lead and pump-out drain for quick and easy installation
- Includes 1 x plate rack & 1 x cutlery holder
- Watermark approved to WMTS-101:2018, Cert. WMKT21944

For machine protection the water hardness should not exceed 3°dH, if higher we recommend using a HOBART HYDROLINE water softener / treatment system.

Features:
- Hood-type dishwasher for straight through or corner operation
- Nominal capacity up to 60 racks/h or 1,080 plates/h or 2,160 glasses/h
- 3 automatic cycles: 60 / 90 & 180 seconds
- Ready to install - completely equipped: fill / drain hose, power cord (415 V), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
- 1 plate rack P-18-12
- 1 universal rack B-00-07
- 1 plastic cutlery box

- Easy-to-use electronic controls with 3 cycles - 60, 90 & 180 seconds
- Electronic temperature gauges
- Suitable for all dish & glass washing applications. Usable chamber height of 440mm. Able to wash 1/1 GN pans when using optional open ended tray racks
- Low 2.3 litres per cycle rinse volume - dish / glasswasher with rinse pump to guarantee rinse volume and pressure
- Fully enclosed 4 sided hood design - avoiding loss of energy / steam
- Optimum hygienic - deep drawn tank with coved corners (no welds) and SELF-CLEANING CYCLE
- Polypropylene wash and stainless-steel rinse arm with patented WIDE ANGLE FAN nozzle to maximise wash and rinse performance
- Wash pump inlet strainer to ensure machine reliability
- Includes chemical dispensers, fill hose, power lead and pump-out drain for quick and easy installation
- Includes 1 x plate rack & 1 x cutlery holder
- Watermark approved to WMTS-101:2018, Cert. WMKT21944

Specifications:
- Wash Tank Temperature: 55 - 65°C
- Rinse Water Temperature Minimum: 82°C
- Low temp cut-out (thermostop) activated: Yes
- Cycle Times*: 60 / 90 / 180 seconds
- Water Consumption: 2.2 litres / rack
- Tank Capacity: 21 litres
- Tank Heating: 2.5 kW
- Power Supply:: 415 / 50 / 3NPE
- Booster Loading: - Standard 6.2 kW
- Total Loading: Standard 7.1 kW
- Pump capacity: 0.7 kW
- Loading Height: 440 mm
- Bench to bench: - internal dimension 628 mm
- Dimensions: 713mm (W) x 815/915mm (D) x 1510/1995mm (H)

VARIENT: H615 ECOMAXPLUSH615 - Basic Model 415 / 50 / 3 NPE - 15 amp
