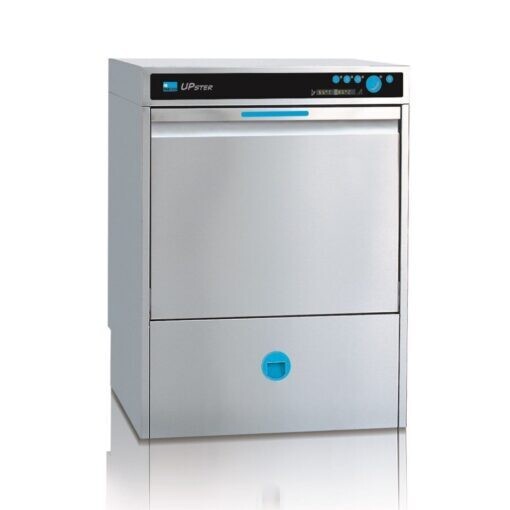

Meiko UPster U500 M2 Undercounter Dishwasher

SKU UPster U 500 M2

$7,741.80

RRP ~~$8,602.00~~

Price incl. GST (10%) $703.80

Quantity:

Product Details

Brand: MEIKO

The spacious rack and generous entry height mean the UPster U 500 commercial dishwasher is especially suited to wash any washware.

And the soft start is particularly gentle on sensitive washware.

A fine addition to any dishwashing area and one that needs not be hidden, considering the machine's sleek, modern design and compact external dimensions of 600 x 810 mm.

Tested and proven MEIKO technology cuts a fine figure even behind the counter.

Technical Data:

Rack capacity/h (theoretical): 22 / 15 / 10 racks/h

Programme cycle: 160 / 240 / 360 s

Rack dimension: 500 x 500 mm (540 x 500)

Entry height: 420 mm

Dimensions (W x Hmin x D): 600 x 820 x 600 mm

Electrical feeding cable: -Alternating current 1N PE 230V 60Hz*

- Total connected load: 3.4 kW

- max. rated current: 18.5 A

Local fuse protection: 20 A

Machine protection class: IP X4

Equipment: - Control system MIKE CPU1

- Infrared interface for wireless communication

- Leakage detector

- Soft start

- Boiler safety device

- Drain pump

- AktivPlus wash water filter system

- Automatic self-cleaning when tank is drained

Fresh water line: Air gap 'AA' in accordance with EN 1717 with booster pump

Fresh water supply: - Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve

- Maximum pressure: 500 kPa / 5.0 bar

- Max. supply water temperature 60 C

Flow rate: 5 l/min

Final rinse water quantity: 2.6 liters/cycle

Boiler: - Contents: 7.0 l

- Heater: 2.50 kW

- Temperature: 83 C

- Tank / boiler locked

Wash tank: - Filling: 11.0 l

- Heater: 2.00 kW

- Temperature: 60 C

Wash pump: Performance: 0.55 kW

Dosing of rinse aid: Hose pump (24 V) with time control and suction lance

Detergent dosage: Hose pump (24 V) with time control and suction lance

Material: - Cladding: 1.4301

- Wash tank: 1.4301

- Boiler: 1.4404

Heat emission for 20 programme cycles/h:

- total: 2.1 kW

- perceptible: 1.4 kW

- latent: 0.7 kW

Ventilation flow rate: 540 m //h

Steam emission: 1.0 kg/h

Emission sound pressure level at the workplace (LpA):63 dB
