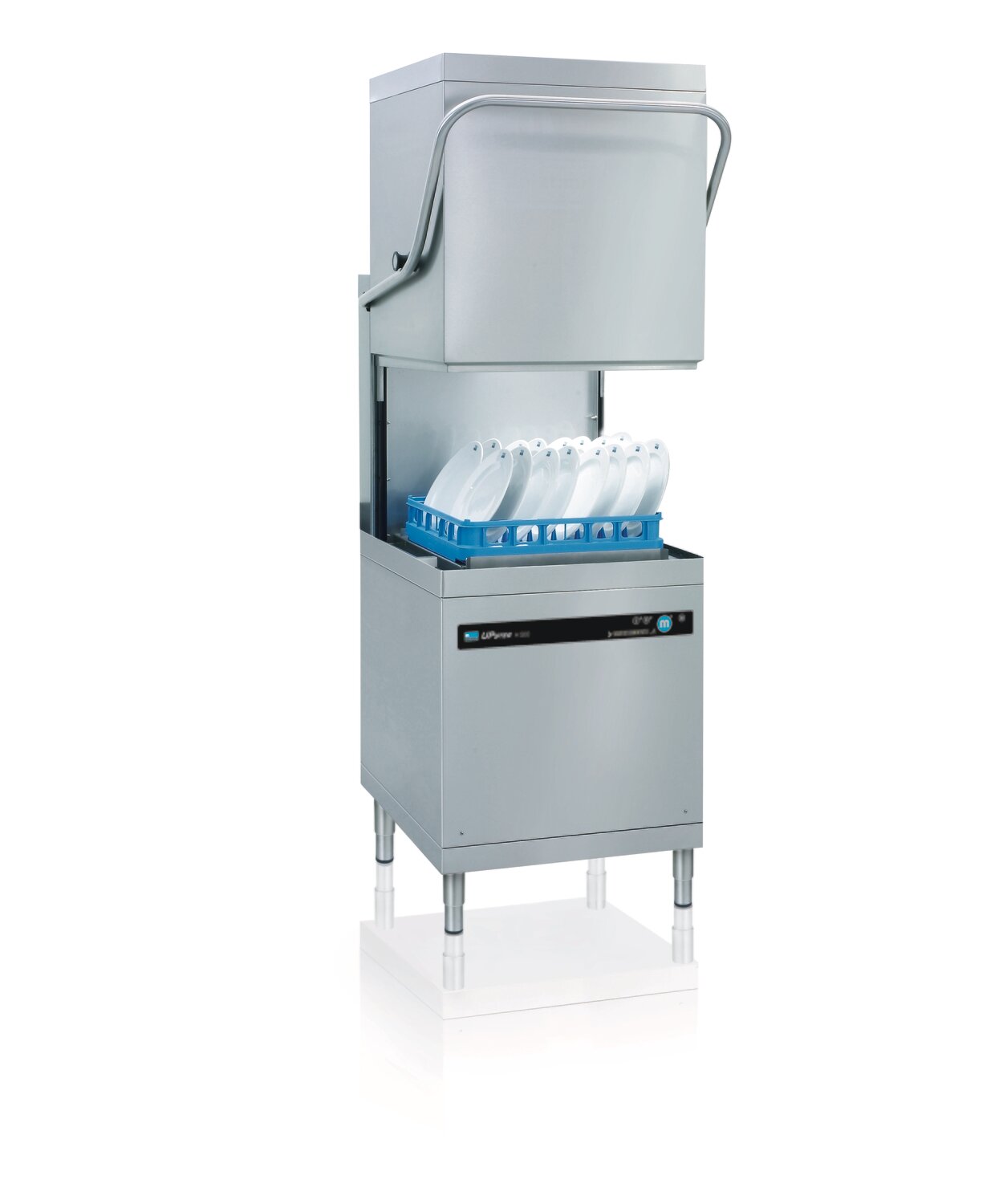

Meiko Upster H500 Industrial Pass Through Dishwasher

Meiko Upster H500 Industrial Pass Through Dishwasher

The UPster® H 500 M1 features pass through technology for even more power and maximum convenience. It offers consistent power and wash convenience at reasonable prices. No clouds of steam when you open the hood of the dishwasher, plus convenient automatic start-up. Thanks to the passing height of 440 mm, the UPster® H 500 M1 is great choice for tall washware, too, such as large plates, serving dishes and trays.
The automatic start-up on our industrial dishwasher UPster H means it cleans with full convenience as well as full power. Wave goodbye to clouds of steam and poor air quality in the scullery with the power package. Instead, make space for serving dishes, large plates and trays in the dishwasher with a passing height of 440 mm. What more could you want?

Features:
Outstanding washing results: thanks to the Eco-filter system and automatic self-cleaning when tank is drained
Simple operation: with automatic programme start. Machine starts automatically when hood handle is pressed down
Hygiene assurance without compromises thanks to digital temperature display for wash and final rinse temperatures.
Robust for heavy commercial use since wash and final rinse arms as well as dosing pipes made of stainless steel.
PPleasant indoor climate: with MEIKO AirBox AktivAir (optional). Centralised vapour management significantly reduces the amount of steam released.
Remains cool and quiet outside because of the double-walled construction with insulation of the door.

Specifications:
Rack capacity/h (theoretical) - 40 / 24 / 15 racks/h
Programme cycle - * 90 / 150 / 240 s
Electrical feeding cable
- 3-phase current 3N PE 400V 50Hz*
- Total connected load: 8.5 kW
- max. rated current: 17.2 A
Local fuse protection - 20 A
Protection class of the machine - IP X4 Equipment
- Hood start
- MIKE control
- Infrared interface for wireless communication
- Drain pump
- Boiler safety device
- Automatic self-cleaning when tank is drained
Fresh water line - Air gap 'AA' in accordance with EN 1717 with booster pump
Fresh water supply
- Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve
- Maximum pressure 500 kPa / 5.0 bar
- Max. supply water temperature 60 C
Flow rate - 4 L/min
Final rinse water quantity - 3 liters/cycle
Boiler
- Contents: 10.5 L
- Heater: 7.50 kW
- Temperature: 83 C
Wash tank
- Filling: 22 L
- Heater: 2.00 kW
- Temperature: 60 C
Wash pump - Performance: 0.75 kW
Dosing of rinse aid - Hose pump (24 V) with time control and suction lance
Detergent dosage - Hose pump (24 V) with time control and suction lance
Material
- Cladding: 1.4301
- Wash tank: 1.4301
- Boiler: 1.4404
Heat emission
- for 20 programme cycles/h
- total: 2.1 kW
- perceptible: 1.4 kW
- latent: 0.7 kW
Ventilation flow rate - 540 m //h
Steam emission - 1.0 kg/h
Sound level - 65 dB(A)

Rack dimension - 500 x 500 mm (540 x 500)
Entry height - 440 mm
Dimensions (W x Hmin x D) - 635 ( 687) x 1520 x 750 (850) mm (with hood rod)

Warranty: 24 months
